LB-SC Heavy Duty Lever Hoist with Overload Protection

Protect your people and your investment.

With all the benefits of the standard Kito LB and also equipped with an integrated slip clutch, the LB-SC is guaranteed to help prevent injuries or damages on the job site. The slip clutch engagement is smooth and seamless with no erratic motion to make sure the load remains steady while lifting. Your people are safer and your hoist lasts longer with less down time for maintenance. That’s why the LB-SC is increasingly becoming the trusted choice for heavy industry.

Unique Slip Clutch
Protecting the hoist and operator are essential. The unique slip clutch on the LB will engage when an excessive overload is detected keeping the load stationary and secure regardless of any additional hand force applied.

Safety Tip Hook and Latch
Taking a hoist off-duty because of a damaged or broken hook latch is unacceptable. That’s why the LB-SC latch was specifically designed to protect it from damage. The notch on the end of the latch is engineered to engage the tip of the hook to protect against lateral impact damage. The latch is also constructed of heavy gauge steel and secured by a widened anchor at the base to increase its rigidity.

Failsafe Freewheel System
Our widely acclaimed fail-safe freewheel system closes the gap between operator safety and load control. Developed in-house 30 years ago, the freewheel mechanism was intentionally created as a two-step process to eliminate the risk of accidental free chaining. The result is dramatically improved functionality and operator safety.

State-Of-The-Art Chain Technology
Kito has successfully established a world-renowned reputation for manufacturing a lighter-weight, ultra-strong, high-performance load chain. What’s more, the LB Grade 100 chain uses a shorter and narrower link profile for greater surface area contact, which improves wear resistance and overall tensile strength.

Structural Steel Side Plates
Regionalized heat-treated side plates provide extreme rigidity to maintain proper body shape and operational efficiency, no matter what the load is. This heat treatment process also prevents abrasion to the load chain during contact with the side plates. This functionality is another example of how Kito is committed to keeping the LB-SC working longer.

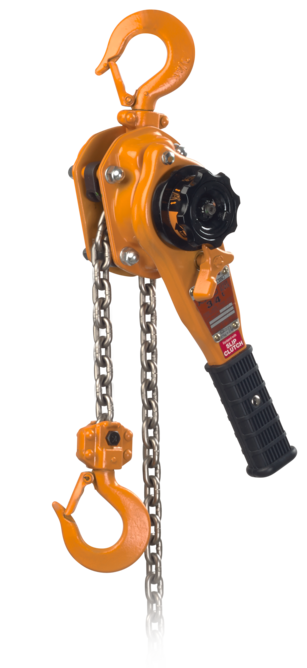

Image of Kito L5LB-SC

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Lever Hoists

LB-SC Heavy Duty Lever Hoist with Overload Protection

CAPACITY
  • ¾ to 9 metric tonnes
STANDARDS
  • ASME B30.21 Safety Standard
  • ASME HST-3 Performance Standard
  • At rated capacity, load-bearing parts are only stressed to 25% of their limit
OPTIONS
  • Top hook extender
  • Shipyard hook
  • Inspection hook
  • Black chain for heavy welding applications
  • Custom lift lengths to suit your requirements
HOW THE SLIP CLUTCH WORKS
  • The slip clutch engages when an excessive overload is detected
  • The load remains stationary and secure regardless of any additional hand force applied
  • This function stops the hoist from overloading and protects the hoist and operator from damage
BODY
  • Rugged, high-impact stamped steel housing
  • Compact and lightweight
  • Open design for easy inspection and cleaning without dismantling the unit
HOOKS
  • Forged, heat-treated alloy steel hooks open gradually without fracturing under excessive load
  • Top and bottom hooks are equipped with self-closing heavy duty hook latches
  • Top and bottom hooks rotate 360 degrees
OPERATION
  • 360-degree handle rotation
  • Rubber grip handle for non-slip operation
  • Operate in close quarters with 15-degree recovery stroke
  • Patented spring-loaded freewheel mechanism for easy adjustment of the load chain and protection against accidental freewheeling under load
GEARS
  • Highly durable, split-load double reduction gears
  • Induction heat-treated and case-hardened
  • Enclosed to protect from dust and water
LOAD CHAIN
  • Nickel plated as standard
  • Grade 100 heat-treated
  • Link Pitch: 2.8D
  • Standard Lift: 5 feet
  • Protective guard around the chain pin for enhanced safety
BRAKE
  • Weston-style load brake with four braking surfaces, two brake pads and two brake pawls for added safety
  • Five-star thread on brake ensures a level braking surface to ease load break-out

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Lever Hoists

LB-SC Heavy Duty Lever Hoist with Overload Protection

L5LB-SC
Hook Mount

Specifications

Capacity (tonne) Model Standard Lift (ft) Hand Pull to Lift Full Load (kg) Headroom (in) Handle Length (in) Load Chain Code Load Chain Falls Ship Weight (lbs) Weight per Additional 5ft of Lift (lbs)
¾ L5LB008-SC 5 27 11 9.75 KLB5056 1 13 3
1½ L5LB015-SC 5 32 13.25 10.5 KLB5071 1 18 4
2½ L5LB025-SC 5 37 14.75 10.5 KLB5088 1 26 6
3 L5LB030-SC 5 35 15.5 16.5 KLB5100 1 35 8
6 L5LB060-SC 5 36 21.25 16.5 KLB5100 2 59 16
9 L5LB090-SC 5 39 26.75 16.5 KLB5100 3 92 24

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Lever Hoists

LB-SC Heavy Duty Lever Hoist with Overload Protection

L5LB-SC
Hook Mount

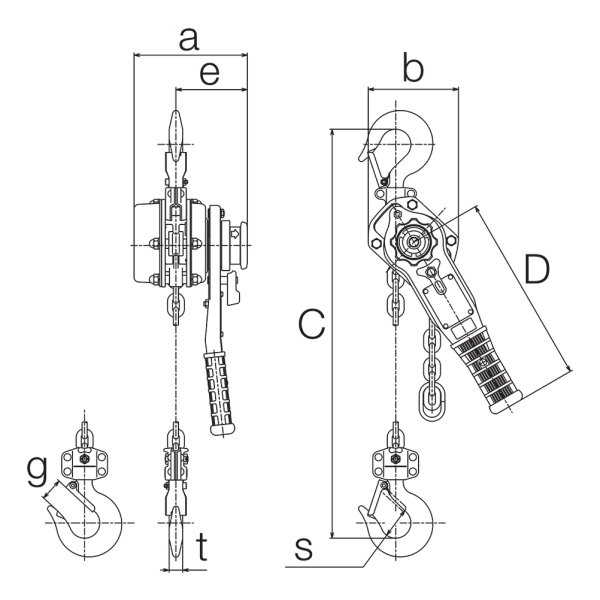

L5LB ¾ - 3 Metric Tonne line drawing

Single Fall Lever Hoist; *For informational purposes only, contact Kito for dimensional drawing

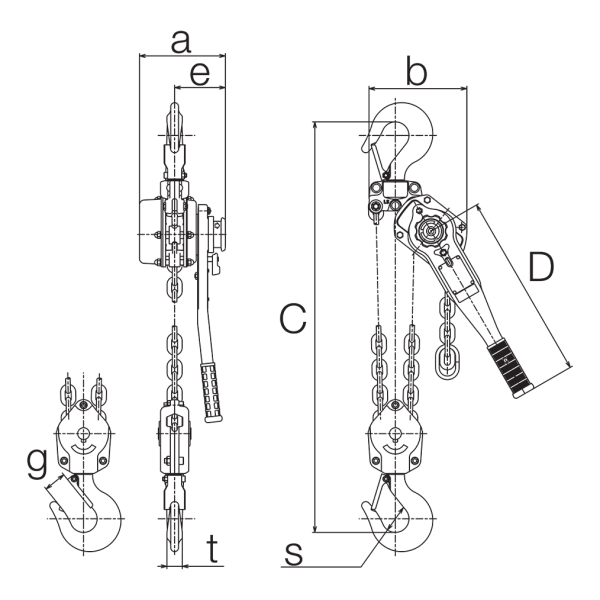

L5LB 6 Metric Tonne line drawing

Double Fall Lever Hoist; *For informational purposes only, contact Kito for dimensional drawing

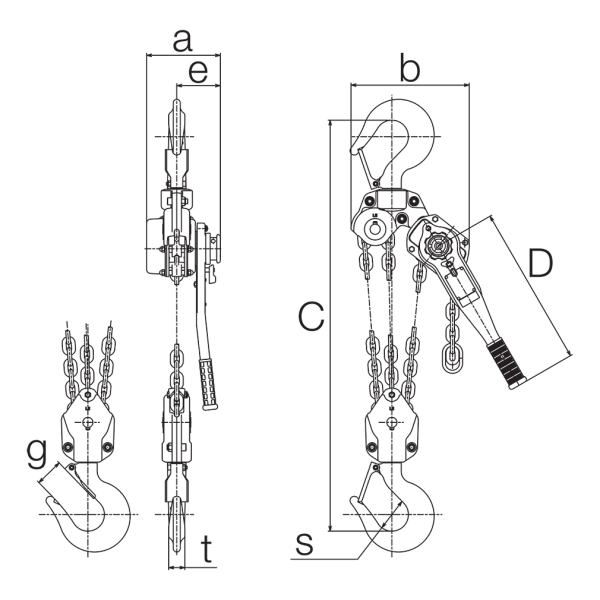

L5LB 9 Metric Tonne line drawing

Triple Fall Lever Hoist; *For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model C D a b e g s t
¾ L5LB008-SC 280 245 144 119 97 23.5 35.5 14
1½ L5LB015-SC 335 265 159 126 100 32 42.5 19
2½ L5LB025-SC 375 265 173 150 102 36.5 47 21
3 L5LB030-SC 395 415 190 159 112 39 50 24.5
6 L5LB060-SC 540 415 190 217 112 50 60 34
9 L5LB090-SC 680 415 190 304 112 72.5 85 41.5
