Hazardous Area Hoists

VLCB Spark Resistant Manual Chain Hoist

Spark-free lifting.

You can rely on the VLCB spark resistant manual chain hoist - certified to ATEX standards to ensure safer lifting in dust-laden or explosive gas atmospheres, along with all the features you know and love from Kito's long-standing manual chain hoists.

ATEX Rated
The Spark Resistant Manual Chain Hoist conforms to the European ATEX directive 2014/34/EU for certified use in potentially explosive atmospheres. ATEX is a multi-level technical standard mandatory in the European Economic Area (EEA) for using equipment in dust-laden or explosive environments.

Standard Slip Clutch
The VLCB's slip clutch protects the hoist from damage and helps the operator maintain balance in the case of an excessive overload. This feature keeps the hoist working safely in position on the job site, reducing costly downtime and repairs, and maximizing the safety of the operator and co-workers in the immediate area.

Bronze Coated Top & Bottom Hooks
Stay safe from top to bottom with load hooks designed to resist sparks at the point of contact.

High Impact Steel Housing
The VLCB has a rugged body and hand wheel cover made of heavy gauge high-impact steel, giving much needed protection in extreme conditions and demanding applications to see every job through to the end.

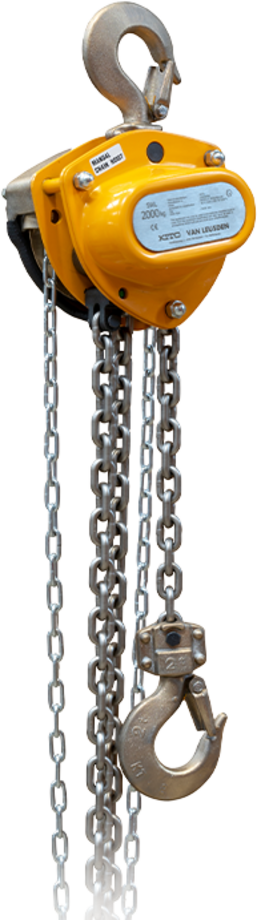

Image of Kito Van Leusden's VLCB spark resistant hand chain hoist

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Hazardous Area Hoists

VLCB Spark Resistant Manual Chain Hoist

CAPACITY
  • 1/2 to 30 Metric Tons (1/2 ~ 3t, larger sizes available up to 30 Metric Tons)
STANDARDS
  • ASME B30.16 Safety Standard
  • ASME HST-2 Performance Standard
  • EC machinery directive 2006/42/EC ATEX Directive 2014/34/EU
  • EN13157
  • Equipment classification Gas ATEX Explosion Protected II 2G EX h IIB T3 Gb (zone 1)
  • Equipment classification Dust ATEX Explosion Protected II 2D EX h IIIB T200°C Db (zone 21)
OPTIONS
  • Available in equipment class Gas ATEX Explosion Protected II 2G EX h IIC T3 Gb (zone 1)
  • Available in equipment class Dust ATEX Explosion Protected II 2D EX h IIIC T135°C Db (zone 21)
  • Special surface protection acc. to ISO 12944
  • Canvas, steel or stainless steel container
  • 3.1 load test certificate
  • SS316 load chain
  • Stainless steel nameplate with tag number
  • Custom lift lengths to suit your requirements
  • Combination with HD3C Explosion protected trolleys
BODY
  • Heavy-duty, high-impact steel construction (similar weight to aluminum)
  • Rugged gear case and hand wheel cover
  • Compact design for low headroom and portability
  • Open load sheave for easy inspection and cleaning without dismantling the unit
  • Surface treatment power coating, colour Munsell 7.2YR6.5/14.5
HAND CHAIN
  • Stainless steel
LOAD CHAIN
  • Nickel plated
  • Grade 100
GEARS
  • Double reduction gearing
  • Induction heat-treated and case-hardened
  • Enclosed to protect from dust and water
HOOKS
  • Bronze coated top and bottom hooks
  • Self-closing top and bottom hooks with heavy-duty hook latch
OPERATION
  • Hand chain operated; low pulling force
  • Reduced operator fatigue through efficient drive train
BEARINGS
  • Maintenance-free sealed bearings increase reliability and reduce pull force required to lift loads
BRAKE
  • Double pawl and double pawl springs for extremely reliable operation and instant brake activation
  • Enclosed to protect from dust, rain, and dirt
OPERATING CONDITIONS
  • Recommended for -40˚ to +40˚ C
STANDARD OVERLOAD PROTECTION
  • Slip clutch device prevents the hoist from lifting damaging loads beyond rated capacity

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Hazardous Area Hoists

VLCB Spark Resistant Manual Chain Hoist

VLCB
Hook Mount

Specifications

Capacity (tonne) Model Standard Lift (ft) Hand Pull to Lift Full Load (kg) Headroom (in) Load Chain Falls Hand Chain Falls
Hook Mount Only
½ VLCB005 8 24 11.22 1 2
1 VLCB010 8 29 11.6 1 2
1½ VLCB015 8 35 13.77 1 2
2 VLCB020 10 36 14.76 1 2
2½ VLCB025 10 33 16.5 1 2
3 VLCB030 10 36 20 2 2

www.kito.ca | 1.888.322.KITO (5486)


All specifications, dimensions and drawings are available at www.kito.ca, or call our Customer Service staff for friendly and expert advice on models and options.
Hazardous Area Hoists

VLCB Spark Resistant Manual Chain Hoist

VLCB
Hook Mount

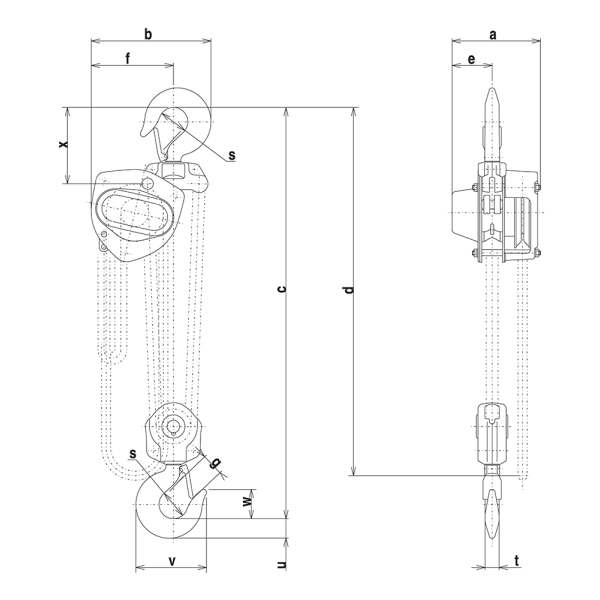

vlcb line drawing

*For informational purposes only, contact Kito for dimensional drawing

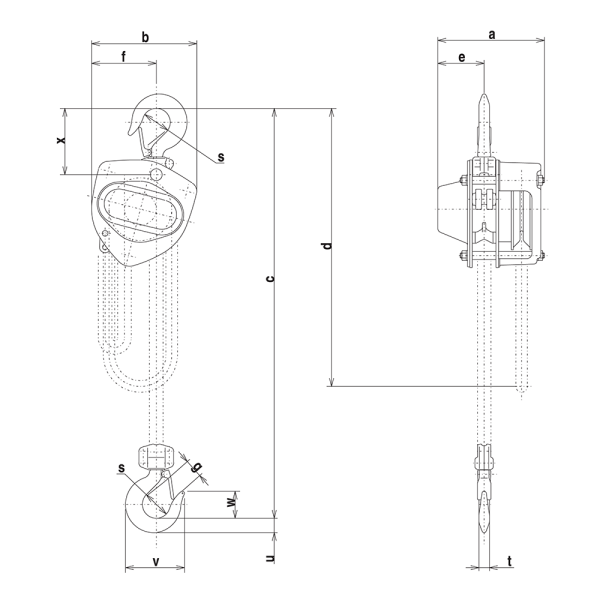

vlcb line drawing

*For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model C a b e f g s t u v w x
½ VLCB005 285 158 161 69 99 27 35.5 12.1 17 77 35 89
1 VLCB010 295 162 161 71 99 29 42.5 16 21.8 93 41 101
1½ VLCB015 350 171 182 78 112 34 47.5 19.5 26.5 106 47 119
2 VLCB020 375 182 202 87 125 36 50 21.8 30 116 49 124
2½ VLCB025 420 192 233 91 143 40 53 24.3 33.5 126 53 136
3 VLCB030 510 171 235 78 162 42.5 56 27.2 37.5 138 57 148
