SHB Low Headroom Hand Chain Hoist

Lift right when space is tight.

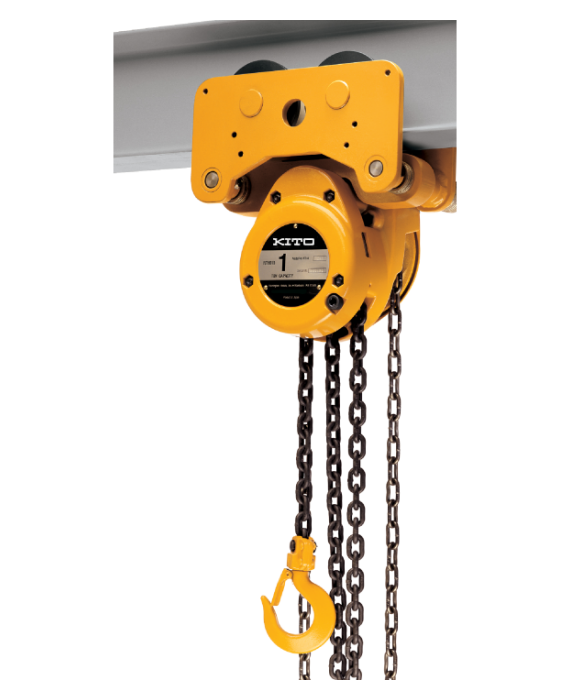

Image of SHB ultra low headroom manual hoist and trolley

Sometimes there’s just not enough room above a load to use a standard hoist. The low-profile SHB hoist and trolley combo works where others can’t. Built around the quality CB hoist and with a headroom as low as 4.5 inches, the SHB is ideal for demanding industrial-lifting applications where space is extra tight.

Image of maximum hook travel on SHB ultra low headroom manual hoist and trolley

Ultra-Low Profile Lift and Maximum Hook Travel

With a headroom of just 10.5cm, the SHB allows you to use every inch of available space. The short headroom feature is specifically designed to provide the maximum hook travel that meets the demands of your restricted lifting application.

Image of the permanently attached manual gear trolley on the SHB ultra low headroom manual hoist and trolley

Permanently Attached Manual Gear Trolley

Designed to function as a single unit, the SHB integrates the proven performance and durability of Kito's standard CB hoist with a permanently attached industrial-grade hand gear trolley.

Image of maintenance-free bearings on SHB ultra low headroom manual hoist and trolley

Maintenance-Free Sealed Trolley Bearings

Focus on the task at hand, not maintaining your equipment. SHB's maintenance-free trolley bearings are sealed and lubricated for life, providing years of smooth, reliable and quiet operation.

Image of the reinforced wheels and steel side plates on the Kito SHB ultra low headroom manual hoist and trolley

Reinforced Wheels and Steel Side Plates

Heavy lifting applications need heavy equipment that can meet their demands. The SHB trolley's cast wheels and structural steel side plates support the weight and provide rigid support and reliability at the same time.

ADJUSTABLE FOR FLAT TAPERED OR FLANGED BEAMS

The trolley wheels on the SHB are designed to work with flat tapered and flanged beams.

CAPACITY
  • 1 to 10 tons
STANDARDS
  • ASME B30.16 Safety Standard
  • ASME HST-2 Performance Standard
  • At rated capacity, load-bearing parts are only stressed to 25% of their limit
OPTIONS
  • Chain container to keep chain clean and out of the way
  • Corrosion-resistant chain for tough environments
  • Custom lift lengths to meet your needs
LOW HEAD ROOM FEATURES
  • Headroom as low as 10.5cm
  • Built-in trolley with cast wheels, sealed bearings and steel side plates for heavy-duty applications
BODY
  • Durable all-steel construction
  • Heavy-duty gearbox and flywheel cover
  • Compact design for low construction height
HAND CHAIN
  • High quality steel
LOAD CURRENT
  • Heat Treated Lightweight Manganese Alloy Steel
  • Grade 100
  • High Impact Steel Chain Guide
  • Standard elevation: 6m
HOOK
  • Forged, heat treated, gradually opens when overloaded
  • Self-closing heavy-duty hook latch
OPERATION
  • Manual chain
  • Reduced operator fatigue through an efficient powertrain
GEARS
  • Double reduction gear that requires very little effort to operate
  • Induction heat treatment and carburizing
  • Closed to protect against dust and water
BEARINGS
  • Maintenance-free sealed bearings increase reliability and reduce tractive force required to lift loads
BRAKE
  • Dual pawl springs for extremely reliable operation and instant brake activation
  • Closed to protect against dust, rain and dirt
OPERATING CONDITIONS
  • Recommended for -20˚ to +60˚C
Choose product configuration below to view info:
Geared Trolley Mount

Click to enlarge

SHB 1 tonne line drawing

2 load chain falls; *For informational purposes only, contact Kito for dimensional drawing

Click to enlarge

SHB 1 tonne line drawing

*For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity(t) Model a d b e f g h k m n o p q r s t
1 SHB010 203 2300 342 200 177 2300 27 25 114 149 289 370 45 B-1.6 152 243
2 SHB020 243 2700 398 226 193 2700 35 30 167 180 335 439 53 B-2.0 152 289
3 SHB030 294 2700 464 241 205 2700 43 33 177 220 391 464 60 B-2.2 182 325
5 SHB050 350 3200 541 266 223 3200 45 35 223 264 454 495 71 B-2.9 182 391
7.5 SHB075 393 3700 586 289 215 3700 60 33 266 299 492 497 83 B-3.5 214 419
10 SHB100 393 3700 586 289 215 3700 60 33 266 299 492 497 83 B-3.5 214 419

*All measurements are in millimeters (mm). Please confirm specifications with technical support before purchase.

Specifications

Capacity(t) Model Headroom (in) Standard Elevation(m) Constructive Height (mm) Hand Pull to Lift Full Load (kg) Standard Flange(mm) Current Code Number of Sections Shipping Weight (lbs) Additional weight for every 5ft of Lift (lbs)
1 SHB010 4.5 6 114 29 58-163 KCF050 two 176 10
2 SHB020 5.7 6 144 26 81-203 KCF071 two 281 14
3 SHB030 6.5 6 165 34 81-203 KCB3080 two 395 16
5 SHB050 7.7 6 195 41 99-203 KCB3090 two 665 19
7.5 SHB075 10 6 254 44 139-218 KCB3090 4 868 31
10 SHB100 10 6 254 44 139-218 KCB3090 4 868 31
