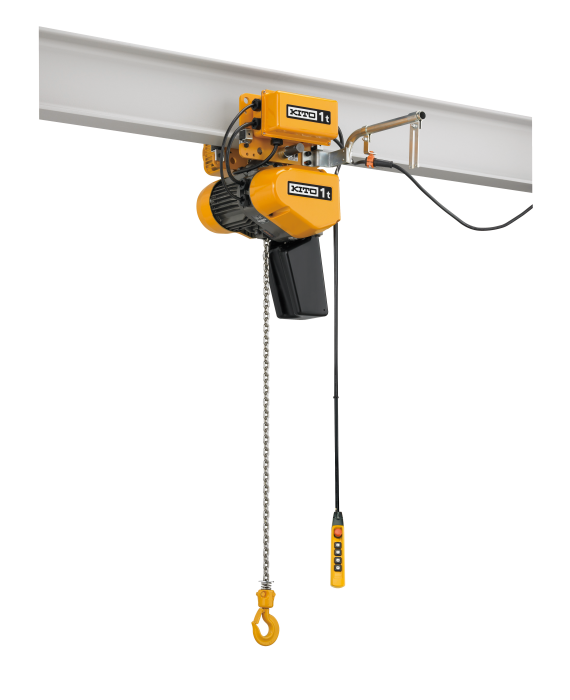

EQ Production Electric Chain Hoist
When voltage is limited, you don't have to be.
![](https://cdn.kito.ca/media/W1siZiIsImtpdG8vMjAxOS8wOC8yNi81OXJyeWNoYTRsX1NFUS5wbmciXSxbInAiLCJjb252IiwiLWJhY2tncm91bmQgbm9uZSAtc2NhbGUgNDYweDcyMCAtZ3Jhdml0eSBjZW50ZXIgLWV4dGVudCA0NjB4NzIwIix7ImZvcm1hdCI6InBuZyIsImZyYW1lIjowfV1d/SEQ.png?sha=229df746dfa810c8)
EQ Production Electric Chain Hoist
When voltage is limited, you don't have to be.
Welcome to the EQ family of powered hoists: smooth starts and stops, adjustable speeds, and unbeatable precision. Fitted with a Variable Frequency Drive and with three phase power, the EQ is where safety and performance meet innovation.
Also available in single phase power with model SEQ.
- 220 Volts
- 440 Volts
![](https://cdn.kito.ca/media/W1siZiIsImtpdG8vMjAxOS8xMS8wOC82d3FzazhzZTgwX1NFUV9WRkQucG5nIl0sWyJwIiwidGh1bWIiLCI1ODh4NDYxIyJdXQ/SEQ%20VFD.png?sha=2432df3dfa86ccfa)
Variable Frequency Drive (VFD)
All dual speed models come with a standard “under-the-cover” variable frequency drive – regardless of voltage. This device works by varying the power to the motor, which allows you to adjust both the high and low speeds. It also provides a soft-start/soft-stop operation to reduce shock loads, swing, and bounce – resulting in more precise load control and longevity of the hoist.
COMPACT ALUMINUM BODY
Die-cast body is lightweight and offers low headroom – one of the best in the industry. Paint is electrostatically applied.
![](https://cdn.kito.ca/media/W1siZiIsImtpdG8vMjAxOS8xMS8wOC81b3p5eDJxcmdiX1NFUV9jaGFpbl9ndWlkZS5wbmciXSxbInAiLCJ0aHVtYiIsIjU4OHg0NjEjIl1d/SEQ%20chain%20guide.png?sha=cd802c88151d3d91)
Unique Chain Guide
Provides quiet and smooth guiding of chain. Heavy cast iron construction for improved wear versus stamped steel design offered by many manufacturers.
![](https://cdn.kito.ca/media/W1siZiIsImtpdG8vMjAxOS8wOC8yMC82bmt2b3ltbTh6X0tpdG81MjEzNF9BZGp1c3RlZC5qcGciXSxbInAiLCJ0aHVtYiIsIjU4OHg0NjEjIl1d/Kito52134_Adjusted.jpg?sha=04b3fc28881eb777)
Self-Adjusting Maintenance-Free Brake
Equipped with an electromagnetic pull rotor brake, the EQ has no brake coil to fail or discs to replace, making it virtually maintenance free.
NO-LOAD HIGH SPEED
When working with less than 30% of the full rated capacity, the EQ can operate 1.3 times faster, optimizing your work efficiency and production time.
![](https://cdn.kito.ca/media/W1siZiIsImtpdG8vMjAxOS8xMS8wOC8yNjl2YXp4ODVsX0Nvb2xpbmdfRmFuX1NFUS5wbmciXSxbInAiLCJ0aHVtYiIsIjU4OHg0NjEjIl1d/Cooling%20Fan%20SEQ.png?sha=399da6d97b3a0cf9)
Extreme Duty, Single-Phase, Fan-Cooled Motor
Rated for an ASME H4 Classification, the motor has a 30/10 minute duty rating in a three phase, dual speed offering. The external motor fan functions to quickly eliminate resistor, motor, and brake heat.
CAPACITY
- 1/8 to 1 metric tonnes
STANDARDS
- ASME H4
- ASME B30.16
- CSA C22.2 NO. 33, 14-13, 66.1-06
- IP55 dust-tight and watertight environmental protection
OPTIONS
- Plain trolley mount
- Hook mount or suspension bar
- Plastic chain container (20' max lift)
BODY
- Die-cast aluminum frame
- Completely sealed body
- Suitable for both indoor and outdoor applications
- Lightweight
- Low headroom profile
GEARS
- Precision machined, induction-hardened alloy helical and spur gears submersed in an oil bath
CHAIN SYSTEM
- Grade 80 load chain certified to DIN standards
- Nickel plated and corrosion resistant
- 5 pocket load sheave reduces vibration and chain wear
- Long-lasting, heavy-duty cast iron construction chain guide, easily replaced without disassembling hoist
HOOKS
- Forged carbon steel opens gradually without fracturing under excessive loads
- Bottom hook swivels 360 degrees
- Self-closing top and bottom hooks with heavy-duty hook latch
CONTROLS
- Located on one central electrical panel
- 24V DC
VFD
- Variable Frequency Drive
- Adjustable speeds
- Standard speed ratio 6:1 adjustable to 10:1
- No-load, high-speed function that automatically increases hoist speed up to 130% when the load is less than 30% of working load limit
PUSH BUTTON STATION
- Impact resistant plastic with molded strain relief to avoid damage from pulling on the push button cord
- IP65 dust-tight and watertight environmental protection
- Ergonomic design – easy to use one-handed operation
- E-Stop
BEARINGS
- High quality anti-friction ball and roller design
BRAKE
- Durable, reliable, and maintenance free pull-rotor motor brake
- External motor fan eliminates brake heat
MOTOR
- Three phase
- Totally enclosed fan cooled (TEFC)
- Insulation class B
- Hertz 60
- 30/10 minute duty rating
OVERLOAD PROTECTION
- Long-life friction clutch protects hoist from excessive overload damage
OVERTRAVEL PROTECTION
- Low profile limit switch disables controls when load block reaches upper or lower travel limit
OPERATING CONDITIONS
- -20˚ to +40˚C
- Humidity of 85% or less
Choose product configuration below to view info:
Dimensions
Capacity (tonne) | Model | Headroom (C) | f | a | b | d | e | h | i | g | j | k |
---|---|---|---|---|---|---|---|---|---|---|---|---|
1/8 | EQS001SD | 15.6 | 200.5 | 416.5 | 366 | 231 | 188 | 137 | 127 | 28 | 172.5 | 485 |
1/4 | EQS003SD | 15.6 | 200.5 | 416.5 | 366 | 231 | 188 | 137 | 127 | 28 | 172.5 | 485 |
1/2 | EQS005SD | 16.1 | 200.5 | 416.5 | 366 | 231 | 188 | 137 | 127 | 28 | 172.5 | 485 |
1 | EQS010SD | 18.3 | 236 | 432 | 404 | 244 | 188 | 155 | 142 | 30.5 | 183 | 539 |
* All measurements in millimeters (mm) - except headroom (C-inches) . Please confirm specifications with technical support before purchase.
Specifications
Capacity (tonne) | Model | Standard Lift (ft.) | Pendant Cord Length L(ft.) | Hoist 3-Phase 60 Hz | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Weight Per Additional 5ft of Lift (lbs) | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Lifting Speed (ft/min) | Output (Hp) | Rated Current (amps) | ||||||||||
High | Low | No Load High Speed | 200-230v | 415-460v | ||||||||
1/8 | EQS001SD | 10 | 8.2 | 56 | 9.3 | 72 | 0.67 | 5.1 | 2.8 | 5.6 x 1 | 71 | 2.4 |
1/4 | EQS003SD | 10 | 8.2 | 33 | 5.5 | 43 | 0.67 | 5.1 | 2.8 | 5.6 x 1 | 71 | 2.4 |
1/2 | EQS005SD | 10 | 8.2 | 25 | 4.2 | 32 | 1 | 6.3 | 3.3 | 5.6 x 1 | 75 | 2.4 |
1 | EQS010SD | 10 | 8.2 | 23 | 3.8 | 30 | 2 | 10.5 | 5.5 | 7.1 x 1 | 97 | 3.85 |
Dimensions
Capacity (tonne) | Model | Headroom (C) | D | a | b | g | h | i | j | m | n | r | t |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/8 | EQP001SD | 16.3 | 505 | 264 | 183 | 28 | 81 | 61 | 19 | 76 | 84 | 38 | 23 |
1/4 | EQP003SD | 16.6 | 505 | 264 | 183 | 28 | 81 | 61 | 19 | 76 | 84 | 38 | 23 |
1/2 | EQP005SD | 16.9 | 505 | 264 | 183 | 28 | 81 | 61 | 19 | 76 | 84 | 38 | 23 |
1 | EQP010SD | 19.3 | 564 | 284 | 236 | 30 | 107 | 71 | 25 | 94 | 112 | 51 | 25.4 |
* All measurements in millimeters (mm) - except headroom (C-inches). Please confirm specifications with technical support before purchase.
Specifications
Capacity (tonne) | Model | Standard Lift (ft.) | Pendant Cord Length L (ft.) | Hoist 3-Phase 60 Hz | Flange Width Adjustability *** B (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Weight Par Additional 5ft of Lift (lbs) | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lifting Speed (ft/mins) | Output (Hp) | Rated Current (amps) | Standard | Optional | ||||||||||
High | Low | No Load High Speed | 200-230v | 415-460v | ||||||||||
1/8 | EQP001SD | 10 | 8.2 | 56 | 9.3 | 72 | 0.67 | 5.1 | 2.8 | 2.28 ~ 5 | 5.01 ~ 8, 8.01 ~ 12 | 5.6 x 1 | 75 | 2.4 |
1/4 | EQP003SD | 10 | 8.2 | 33 | 5.5 | 43 | 0.67 | 5.1 | 2.8 | 2.28 ~ 5 | 5.01 ~ 8, 8.01 ~ 12 | 5.6 x 1 | 75 | 2.4 |
1/2 | EQP005SD | 10 | 8.2 | 25 | 4.2 | 32 | 1 | 6.3 | 3.3 | 2.28 ~ 5 | 5.01 ~ 8, 8.01 ~ 12 | 5.6 x 1 | 79 | 2.4 |
1 | EQP010SD | 10 | 8.2 | 23 | 3.8 | 30 | 2 | 10.5 | 5.5 | 2.28 ~ 5 | 5.01 ~ 8, 8.01 ~ 12 | 7.1 x 1 | 108 | 3.85 |
Dimensions
Capacity (tonne) | Model | Headroom (C) | f | a | b | d | e | h | i | g | j | k |
---|---|---|---|---|---|---|---|---|---|---|---|---|
1/8 | EQ001SD | 17.3 | 200.5 | 416.5 | 366 | 231 | 188 | 137 | 127 | 28 | 172.5 | 534 |
1/4 | EQ003SD | 17.3 | 200.5 | 416.5 | 366 | 231 | 188 | 137 | 127 | 28 | 172.5 | 534 |
1/2 | EQ005SD | 18 | 200.5 | 416.5 | 366 | 231 | 188 | 137 | 127 | 28 | 172.5 | 534 |
1 | EQ010SD | 20.7 | 236 | 432 | 404 | 244 | 188 | 155 | 142 | 30.5 | 183 | 597 |
* All measurements in millimeters (mm) - except headroom (C-inches). Please confirm specifications with technical support before purchase.
Specifications
Capacity (tonne) | Model | Standard Lift (ft) | Pendant Cord L (ft.) | Hoists 3-Phase 60 Hz | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Weight Per Additional 5ft of Lift (lbs) | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Lifting Speed (ft/min) | Output (Hp) | Rated Current (amps) | ||||||||||
High | Low | No Load High Speed | 200-230v | 415-460v | ||||||||
1/8 | EQ001SD | 10 | 8.2 | 56 | 9.3 | 72 | 0.67 | 5.1 | 2.8 | 5.6 x 1 | 71 | 2.4 |
1/4 | EQ003SD | 10 | 8.2 | 33 | 5.5 | 43 | 0.67 | 5.1 | 2.8 | 5.6 x 1 | 71 | 2.4 |
1/2 | EQ005SD | 10 | 8.2 | 25 | 4.2 | 32 | 1 | 6.3 | 3.3 | 5.6 x 1 | 75 | 2.4 |
1 | EQ010SD | 10 | 8.2 | 23 | 3.8 | 30 | 2 | 105. | 5.5 | 7.1 x 1 | 97 | 3.85 |
Dimensions
Capacity (tonne) | Model | C (in.) | D | b' | b | d | e | e' | g | i | j | k | m | n | r | t |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1/8 | EQM001SD | 16.5 | 20.3 | 15.6 | 12.4 | 8.7 | 20.3 | 7.1 | 1.1 | 3.7 | 1.1 | 5.1 | 8.1 | 4.3 | 2.0 | 1.22 |
1/4 | EQM003SD | 16.5 | 20.3 | 15.6 | 12.4 | 8.7 | 20.3 | 7.1 | 1.1 | 3.7 | 1.1 | 5.1 | 8.1 | 4.3 | 2.0 | 1.22 |
1/2 | EQM005SD | 17.3 | 20.3 | 15.6 | 12.4 | 8.7 | 20.3 | 7.1 | 1.1 | 3.7 | 1.1 | 5.1 | 8.1 | 4.3 | 2.0 | 1.22 |
1 | EQM010SD | 19.3 | 22.2 | 15.6 | 12.4 | 8.7 | 20.3 | 7.1 | 1.2 | 3.7 | 1.2 | 5.1 | 8.1 | 4.3 | 2.0 | 1.22 |
Please confirm specifications with technical support before purchase.
Specifications
Capacity (tonnes) | Model | Travel Speed (ft/min) | Flange Width (in) | Minimum Radius for Curve (mm) | Motor H.P. | Ship Weight (lbs) | Weight Per Additional 5ft of Lift (lbs) | |||
---|---|---|---|---|---|---|---|---|---|---|
Hoist | Trolley | Standard | Extension Shaft | Hoist | Trolley | |||||
1/8 | EQM001SD | 59/6 | 80/13 | 2.28 - 6.02 | 6.02 - 12 | 800 | 0.67 | 0.54 | 139 | 2.4 |
1/4 | EQM003SD | 33/6 | 80/13 | 2.28 - 6.03 | 6.03 - 12 | 800 | 0.67 | 0.54 | 141 | 2.4 |
1/2 | EQM005SD | 25/4 | 80/13 | 2.28 - 6.04 | 6.04 - 12 | 800 | 1 | 0.54 | 146 | 2.4 |
1 | EQM010SD | 23/4 | 80/13 | 2.28 - 6.05 | 6.05 - 12 | 800 | 1.3 | 0.54 | 165 | 3.85 |
