UBC Universal Beam Clamp
Holds true every time.
![](https://cdn.kito.ca/media/W1siZiIsImtpdG8vMjAxNC8wNS8xNS80N3ZmcTQyaWdjX1VCQ18zdC5wbmciXSxbInAiLCJjb252IiwiLWJhY2tncm91bmQgbm9uZSAtc2NhbGUgNDYweDcyMCAtZ3Jhdml0eSBjZW50ZXIgLWV4dGVudCA0NjB4NzIwIix7ImZvcm1hdCI6InBuZyIsImZyYW1lIjowfV1d/UBC_3t.png?sha=ae7a75ac69f57213)
UBC Universal Beam Clamp
Holds true every time.
Kito's UBC can be used as a temporary anchor point or as a below-the-hook device. You’ll have peace of mind knowing the secure clamp uses proven, lock-nut protection to rule out loosening due to vibrations. Safe and functional, the UBC is also designed with a wide adjustable-jaw opening and both a left- and right-hand clamp screw for quick operation.
![](https://cdn.kito.ca/media/W1siZiIsImtpdG8vMjAxNC8wNS8xNS8xeG9uN2Fmdmp3X3dpZGVfamF3LmpwZyJdLFsicCIsInRodW1iIiwiNTg4eDQ2MSMiXV0/wide_jaw.jpg?sha=bd1f7854dcb49f15)
Temporary or Semi-Permanent Anchor Point
Kito's UBC Universal Beam Clamp is the perfect accessory when a temporary or semi-permanent hoist anchor point is required.
![](https://cdn.kito.ca/media/W1siZiIsImtpdG8vMjAxNC8wNi8wNC85MzVucjI5bGJhX1VCQ19iZWxvd190aGVfaG9vay5qcGciXSxbInAiLCJ0aHVtYiIsIjU4OHg0NjEjIl1d/UBC_below_the_hook.jpg?sha=5fa851872402c539)
Below-The-Hook Flexibility

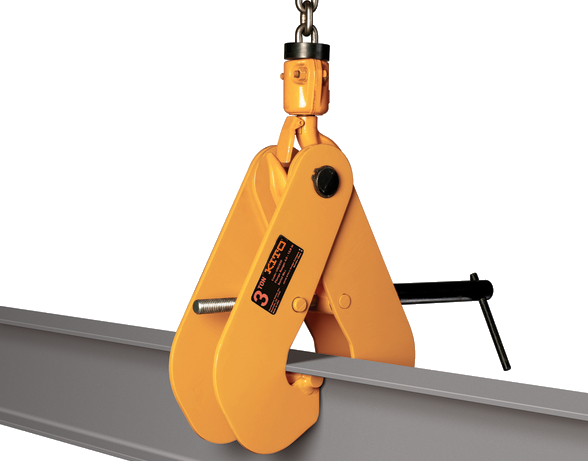

The UBC adjustable beam clamp offers a cost-effective method for most work-holding and positioning applications, and can also be used as a below-the-hook lifting attachment.
![](https://cdn.kito.ca/media/W1siZiIsImtpdG8vMjAxNC8wNS8xNS84cWxrd3ZvZHFlX2xvY2tudXQuanBnIl0sWyJwIiwidGh1bWIiLCI1ODh4NDYxIyJdXQ/locknut.jpg?sha=a388828f4a496c40)
Locknuts That Stay Tight
Designed for added safety and to resist loosening, the UBC’s locknut protection feature keeps things tight.
![](https://cdn.kito.ca/media/W1siZiIsImtpdG8vMjAxNC8wNS8xNS84cGVjajVzZXUxX3N1c3BlbnNpb25fcGluLmpwZyJdLFsicCIsInRodW1iIiwiNTg4eDQ2MSMiXV0/suspension_pin.jpg?sha=5e73f798deafbb09)
Designed for Low Headroom
Take advantage of low headroom in your application with a built-in suspension pin.
![](https://cdn.kito.ca/media/W1siZiIsImtpdG8vMjAxNC8wNi8wNC8zNTNzZXY5dXBqX3dpZGVfb3Blbl9iZWFtX2NsYW1wLmpwZyJdLFsicCIsInRodW1iIiwiNTg4eDQ2MSMiXV0/wide_open_beam_clamp.jpg?sha=5eddfb3d00fc41a4)
Wide-Jaw Opening
Install the UBC beam clamp onto any beam, including tapered or flat-flanged, to create a strong and safe hoist mount. For industrial, construction, rigging or holding, the UBC beam clamp can do it all.
CAPACITY
- 1, 2, 3, 5 and 10 metric tonnes
STANDARDS
- ASME B30.20 Safety Standard
- Meets ASME BTH-1
- Each clamp is individually serialized and load tested (test certificates included)
OPTIONS
- Suspender for perpendicular mounting and over-sized hooks
BODY
- Solid Steel, lightweight portable frame
- Built-in suspension pin for low headroom
OPERATION
- Jaw opening adjusts for a wide range of tapered or flat flanged beams
- Left and right-hand clamp screw allows for a quick clamping and unclamping
- For use with manual and powered hoists
HARDWARE
- Lock nut feature resists loosening to improve secure clamping
- Built-in suspension pin for low headroom
APPLICATIONS
- Industrial and construction lifting applications
- Overhead lifting and vertical rigging operations
- Holding and positioning beams for construction
- Below the hook holding device
Choose product configuration below to view info:
Dimensions
Capacity (tonne) | Model | Max. E | F | G | H | J | A | B | C | T |
---|---|---|---|---|---|---|---|---|---|---|
1 | UBC010 | 12.25 | 3 | 9.25 | 0.88 | 2.1 | 0.75 | 2 | 2 | 0.63 |
2 | UBC020 | 12.25 | 3 | 9.25 | 0.88 | 2.1 | 0.75 | 2 | 2 | 0.63 |
3 | UBC030 | 19.75 | 4.25 | 11 | 1.25 | 2.38 | 1 | 2.5 | 2.5 | 1 |
5 | UBC050 | 19.7 | 4.25 | 11 | 1.25 | 2.38 | 1 | 2.5 | 2.5 | 1 |
10 | UBC100 | 22.5 | 6 | 14.63 | 1.75 | 4.65 | 1.38 | 3.75 | 6.25 | 1.25 |
* All measurements in inches (in). Please confirm specifications with technical support before purchase.
Specifications
Capacity (tonne) | Model | Flange Range D (in) | Max Beam Flange Thickness (in) | Net Weight (lbs)* | Shipping Weight Approx. (lbs)* |
---|---|---|---|---|---|
1 | UBC010 | 3 - 7.5 | 0.83 | 8 | 10 |
2 | UBC020 | 3 - 7.5 | 0.83 | 9 | 11 |
3 | UBC030 | 4 - 12 | 1 | 19 | 22 |
5 | UBC050 | 4 - 12 | 1 | 22 | 25 |
10 | UBC100 | 6 - 13.2 | 1.75 | 55 | 60 |
