LB-SC Heavy Duty Lever Hoist with Overload Protection
Protect your people and your investment.
LB-SC Heavy Duty Lever Hoist with Overload Protection
Protect your people and your investment.

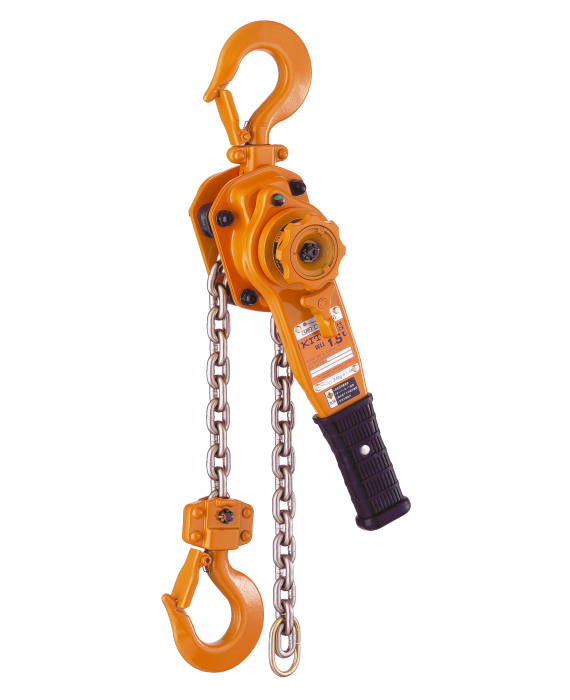

With all the benefits of the standard Kito LB and also equipped with an integrated slip clutch, the LB-SC is guaranteed to help prevent injuries or damages on the job site. The slip clutch engagement is smooth and seamless with no erratic motion to make sure the load remains steady while lifting. Your people are safer and your hoist lasts longer with less down time for maintenance. That’s why the LB-SC is increasingly becoming the trusted choice for heavy industry.
Unique Slip Clutch
Protecting the hoist and operator are essential. The unique slip clutch on the LB will engage when an excessive overload is detected keeping the load stationary and secure regardless of any additional hand force applied.
Safety Tip Hook and Latch
Taking a hoist off-duty because of a damaged or broken hook latch is unacceptable. That’s why the LB-SC latch was specifically designed to protect it from damage. The notch on the end of the latch is engineered to engage the tip of the hook to protect against lateral impact damage. The latch is also constructed of heavy gauge steel and secured by a widened anchor at the base to increase its rigidity.
Failsafe Freewheel System
Our widely acclaimed fail-safe freewheel system closes the gap between operator safety and load control. Developed in-house 30 years ago, the freewheel mechanism was intentionally created as a two-step process to eliminate the risk of accidental free chaining. The result is dramatically improved functionality and operator safety.
State-Of-The-Art Chain Technology
Kito has successfully established a world-renowned reputation for manufacturing a lighter-weight, ultra-strong, high-performance load chain. What’s more, the LB Grade 100 chain uses a shorter and narrower link profile for greater surface area contact, which improves wear resistance and overall tensile strength.
Structural Steel Side Plates
Regionalized heat-treated side plates provide extreme rigidity to maintain proper body shape and operational efficiency, no matter what the load is. This heat treatment process also prevents abrasion to the load chain during contact with the side plates. This functionality is another example of how Kito is committed to keeping the LB-SC working longer.
L5LB Freewheel Function
LB Series
The L5LB forged an entirely new, industry-leading benchmark by being smaller, lighter, and stronger than any other lever hoist on the market. Its proven strength and durability stand up in an endless array of grueling applications, including environments where temperatures drop to a bone-chilling -40 ˚C.
L5LB Freewheel Mechanism
Kito's Maurie Bergstrom demonstrates the L5LB Freehweel Mechanism.
Kito's "Smart" Weston-style Mechanical Brake in Action
Kito's Maurie Bergstrom demonstrates the L5LB lever chain hoist "smart" mechanical brake.
How Slip Clutch Hoists Create Safer Worksites
Kito's Maurie Bergstrom shows how the L5LB's slip clutch helps create a safer workplace.
CAPACITY
- ¾ to 9 metric tonnes
STANDARDS
- ASME B30.21 Safety Standard
- ASME HST-3 Performance Standard
- At rated capacity, load-bearing parts are only stressed to 25% of their limit
OPTIONS
- Top hook extender
- Shipyard hook
- Inspection hook
- Black chain for heavy welding applications
- Custom lift lengths to suit your requirements
HOW THE SLIP CLUTCH WORKS
- The slip clutch engages when an excessive overload is detected
- The load remains stationary and secure regardless of any additional hand force applied
- This function stops the hoist from overloading and protects the hoist and operator from damage
BODY
- Rugged, high-impact stamped steel housing
- Compact and lightweight
- Open design for easy inspection and cleaning without dismantling the unit
HOOKS
- Forged, heat-treated alloy steel hooks open gradually without fracturing under excessive load
- Top and bottom hooks are equipped with self-closing heavy duty hook latches
- Top and bottom hooks rotate 360 degrees
OPERATION
- 360-degree handle rotation
- Rubber grip handle for non-slip operation
- Operate in close quarters with 15-degree recovery stroke
- Patented spring-loaded freewheel mechanism for easy adjustment of the load chain and protection against accidental freewheeling under load
GEARS
- Highly durable, split-load double reduction gears
- Induction heat-treated and case-hardened
- Enclosed to protect from dust and water
LOAD CHAIN
- Nickel plated as standard
- Grade 100 heat-treated
- Link Pitch: 2.8D
- Standard Lift: 5 feet
- Protective guard around the chain pin for enhanced safety
BRAKE
- Weston-style load brake with four braking surfaces, two brake pads and two brake pawls for added safety
- Five-star thread on brake ensures a level braking surface to ease load break-out
Choose product configuration below to view info:
Hook Mount
Click to enlarge
L5LB ¾ - 3 Metric Tonne
Single Fall Lever Hoist; *For informational purposes only, contact Kito for dimensional drawing
Click to enlarge
L5LB 6 Metric Tonne
Double Fall Lever Hoist; *For informational purposes only, contact Kito for dimensional drawing
Click to enlarge
L5LB 9 Metric Tonne
Triple Fall Lever Hoist; *For informational purposes only, contact Kito for dimensional drawing
Dimensions
| Capacity (tonne) | Model | C | D | a | b | e | g | s | t |
|---|---|---|---|---|---|---|---|---|---|
| ¾ | L5LB008-SC | 280 | 245 | 144 | 119 | 97 | 23.5 | 35.5 | 14 |
| 1½ | L5LB015-SC | 335 | 265 | 159 | 126 | 100 | 32 | 42.5 | 19 |
| 2½ | L5LB025-SC | 375 | 265 | 173 | 150 | 102 | 36.5 | 47 | 21 |
| 3 | L5LB030-SC | 395 | 415 | 190 | 159 | 112 | 39 | 50 | 24.5 |
| 6 | L5LB060-SC | 540 | 415 | 190 | 217 | 112 | 50 | 60 | 34 |
| 9 | L5LB090-SC | 680 | 415 | 190 | 304 | 112 | 72.5 | 85 | 41.5 |
* All measurements in millimeters (mm). Please confirm specifications with technical support before purchase.
Specifications
| Capacity (tonne) | Model | Standard Lift (ft) | Hand Pull to Lift Full Load (kg) | Headroom (in) | Handle Length (in) | Load Chain Code | Load Chain Falls | Ship Weight (lbs) | Weight per Additional 5ft of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| ¾ | L5LB008-SC | 5 | 27 | 11 | 9.75 | KLB5056 | 1 | 13 | 3 |
| 1½ | L5LB015-SC | 5 | 32 | 13.25 | 10.5 | KLB5071 | 1 | 18 | 4 |
| 2½ | L5LB025-SC | 5 | 37 | 14.75 | 10.5 | KLB5088 | 1 | 26 | 6 |
| 3 | L5LB030-SC | 5 | 35 | 15.5 | 16.5 | KLB5100 | 1 | 35 | 8 |
| 6 | L5LB060-SC | 5 | 36 | 21.25 | 16.5 | KLB5100 | 2 | 59 | 16 |
| 9 | L5LB090-SC | 5 | 39 | 26.75 | 16.5 | KLB5100 | 3 | 92 | 24 |
