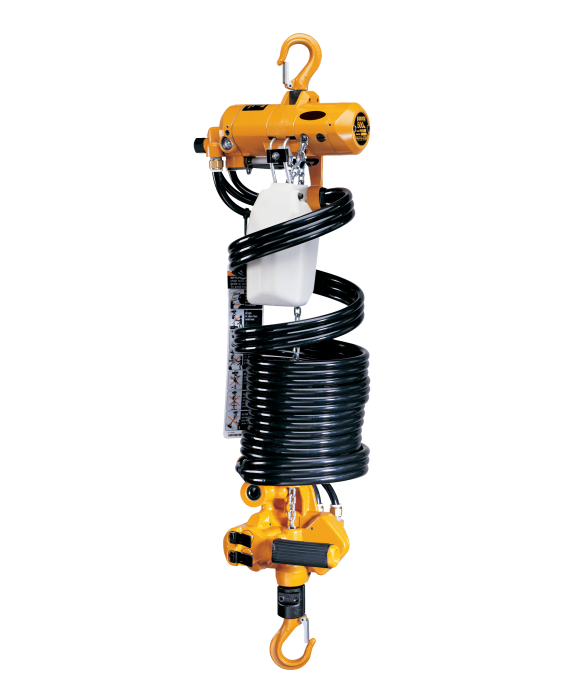

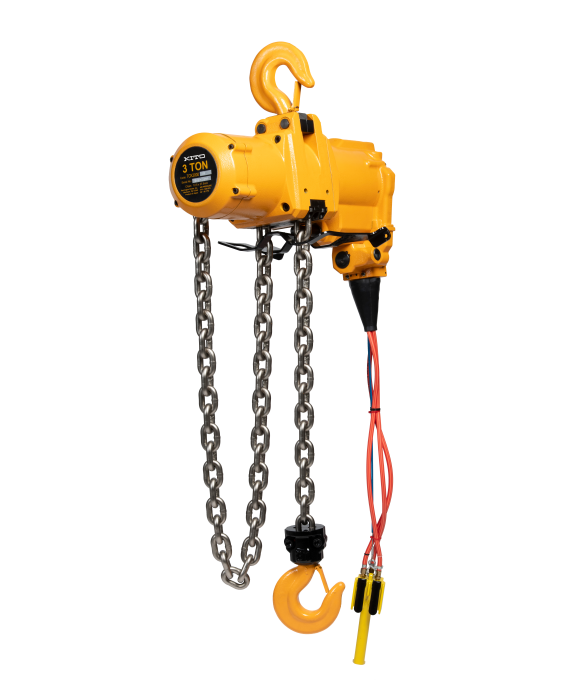

TCR Heavy Duty Air Hoist

100% quality, 100% of the time.

If you need a hoist with 100 percent duty ratings, fine-feathering controls, and quiet operation, you’ll love the TCR pneumatic hoist. Lift all day and all night with this workhorse. Smooth starts and stops with variable-speed operation provide extremely accurate load positioning and control. Put this hoist on the top of your list when you need productivity and precision for years on end.

Unlimited Duty Cycle

The TCR air hoist is built for long and demanding work shifts. With its unlimited duty cycle, you can continually operate the hoist without worrying about damage from too many starts per hour.

High-Strength Cast-Iron Housing

Proven to be resistant in harsh environments, the TCR’s high-strength cast-iron housing provides a rugged body that stands up to the toughest demands.

Very Fine Feathering Control

The spring-loaded, multi-vane motor design lets you place and position a load exactly where you need it. Gradually control the lift with very fine feathering movements both up or down.

Pre-Set Load Limiter

Protect the hoist and operator while avoiding downtime. The TCR’s adjustable, built-in load limiter is pre-set to stop lifting when the load capacity is over-rated, which keeps your job site safer.

Reduced Noise Levels

An external muffler gives you quieter operation and dampened noise levels with no load. The TCR’s air-tight body contributes to its comfortable noise levels and makes efficient use of air.

CAPACITY
  • ¼ to 2 metric tonnes
STANDARDS
  • 80.5 dBA at 1 metre
  • Operating Conditions: Recommended for -10 to +60° Celsius
  • Oil filter and lubricator comes standard in the box
OPTIONS
  • Pendant or cord control to meet your needs
  • Chain bag to keep chain clean and out of the way
  • Custom lift lengths to suit your requirements
  • Plain, geared, or air trolley mount
BODY
  • High-strength cast iron housing for proven weather resistance and durability in harsh environments
  • Compact and low profile headroom
GEARS
  • Planetary gear box
LOAD CHAIN
  • Ultra-strong high performance nickel-plated load chain
  • Grade 80
HOOKS
  • Forged carbon steel opens gradually without fracturing under excessive loads
  • Bottom and top hooks swivel 360 degrees
  • Self-closing top and bottom hooks with heavy-duty hook latch
OPERATION
  • Pendant, cord, or manipulator control
  • Provides outstanding control for fine feathering movements using a spring-loaded multi-vane motor design
BRAKE
  • Heavy-duty, self-adjusting brake
MOTOR
  • Air Supply: 60 to 90 psi
  • Air-powered, spring-loaded multi-vane
  • Speed Control: Full range variable speed control
  • Minimum 10 to 15 drops of oil per minute from a max distance of 15 feet
  • Maximum 5-micron air filter or finer required
  • Unlimited duty cycle
OVERLOAD PROTECTION
  • Internal load limiter automatically stops lifting when load is over the rated capacity. Standard on 1/2 tonne model and above
  • Standard upper and lower limit switches prevent overtravel in up or down direction
Choose product configuration below to view info:
Hook Mount
Geared Trolley Mount
Plain Trolley Mount
Air Powered Trolley Mount

TCR Cord Control - Hook Mount

Click to enlarge

Hook Mount Single Fall (cord control); *For informational purposes only, contact Kito for dimensional drawing

Click to enlarge

Hook Mount Dual Fall (cord control); *For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model C (in.) a b d e g h i
1/4 TCR250C 12 287 101 112 165 23 71 79
1/2 TCR500C 18.2 340 175 155 165 28 124 117
1 TCR1000C2 20.4 340 185 155 165 28 150 142
1 TCR1000C 18.3 340 175 155 165 28 124 142
2 TCR2000C2 21.8 340 193 155 165 28 152 142

* All measurements in millimeters (mm) - except headroom (C-inches) . Please confirm specifications with technical support before purchase.

Specifications

Capacity (tonne) Model Standard Lift (ft) Cord L (ft) Speeds (90 PSI - ft/min) Up/Down Rates (90 PSI - Cubic ft/min) Up/Down Air Consumption Load Chain Diameter (mm) x Chain Fall Lines Net Weight (Lbs) Weight For Additional 5ft of lift (Lbs)
w/NO Load w/Full Load w/NO Load w/Full Load
1/4 TCR250C 10 6 61/45 29/57 35/28 28/32 4 x 1 15 4
1/2 TCR500C 10 6 62/43 33/53 63/49 49/57 6.3 x 1 66 4
1 TCR1000C2 10 6 31/21 16/26 63/49 49/57 6.3 x 2 76 8
1 TCR1000C 10 6 34/21 19/30 62/53 49/60 7.1 x 1 73 5
2 TCR2000C2 10 6 17/10 10/15 62/53 49/60 7.1 x 2 86 10

TCR Pendant Control - Hook Mount

Click to enlarge

Hook Mount Single Fall (pendant control); *For informational purposes only, contact Kito for dimensional drawing

Click to enlarge

Hook Mount Dual Fall (pendant control); *For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model C (in.) a b d e g h i
1/4 TCR250P 12 287 101 111 175 23 71 79
1/2 TCR500P 18.2 340 175 175 167 28 124 117
1 TCR1000P2 20.4 340 185 185 167 28 150 117
1 TCR1000P 18.3 340 175 175 167 28 150 142
2 TCR2000P2 21.8 340 193 193 167 28 152 142

* All measurements in millimeters (mm) - except headroom (C-inches) . Please confirm specifications with technical support before purchase.

Specifications

Capacity (tonne) Model Standard Lift (ft) Push Button L (ft) Up/Down Speeds (90 psi - ft/min) Up/Down Air Consumption Rates (cubic ft/min @ 90 psi) Load Chain Diameter (mm) x Chain Fall Lines Net Weight (Lbs) Weight For Additional 5ft of lift (Lbs)
w/NO Load w/Full Load w/NO load w/Full load
1/4 TCR250P 10 6 55/41 27/54 32/25 25/28 4 x 1 19 4
1/2 TCR500P 10 6 62/43 33/53 60/49 49/57 6.3 x 1 68 4
1 TCR1000P2 10 6 31/21 16/26 60/49 49/57 6.3 x 2 78 8
1 TCR1000P 10 6 34/21 19/30 60/53 49/60 7.1 x 1 75 5
2 TCR2000P2 10 6 17/10 10/15 60/53 49/60 7.1 x 2 88 10

TCR Cord Control - Geared Trolley Mount

Click to enlarge

Geared Trolley Mount Single Fall (cord control); *For informational purposes only, contact Kito for dimensional drawing

Click to enlarge

Geared Trolley Mount Dual Fall (cord control); *For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model C (in.) F a b e g h k n r t v X(ft)
1/4 TCRG250C 19 2~4 531 236 338 28 81 76 112 51 22 183 10
1/2 TCRG500C 19 2~4 531 236 338 28 81 76 112 51 22 183 10
1 TCRG1000C2 21.3 2.3~5 531 236 338 28 106 94 112 51 25 183 10
1 TCRG1000C 19.2 2.3~5 531 236 338 28 106 94 112 51 25 183 10
2 TCRG2000C2 21.9 3.3~6 630 280 338 28 127 112 132 61 32 183 10

* All measurements in millimeters (mm) - except headroom (C-inches) . Please confirm specifications with technical support before purchase.

Specifications

Capacity (tonne) Model Standard Lift (ft) Cord L (ft) Speed (ft/min @ 90 psi) Up/Down Rates (Cubic ft/min @ 90 psi) Up/Down Air Consumption Load Chain Diameter (mm) x Chain Fall Lines Net Weight (Lbs) Weight For Additional 5ft of lift (Lbs)
w/NO Load w/full Load w/NO Load w/full Load
1/4 TCRG250C 10 6 55/41 27/54 32/25 25/28 4 x 1 96 6
1/2 TCRG500C 10 6 62/43 33/53 60/49 49/57 6.3 x 1 96 6
1 TCRG1000C2 10 6 31/21 16/26 60/49 49/57 6.3 x 2 108 9
1 TCRG1000C 10 6 34/21 19/30 60/53 49/60 7.1 x 1 105 7
2 TCRG2000C2 10 6 17/10 10/15 60/53 49/60 7.1 x 2 130 10.5

TCR Cord Control - Plain Trolley Mount

Click to enlarge

Plain Trolley Mount Single Fall (cord control); *For informational purposes only, contact Kito for dimensional drawing

Click to enlarge

Plain Trolley Mount Dual Fall (cord control); *For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model C (in.) F a b e g h k n r t
1/4 TCRP250C 18.6 2~4 203 183 46 28 81 76 84 38 22
1/2 TCRP500C 18.6 2~4 203 183 46 28 81 76 84 38 22
1 TCRP1000C2 21.3 2.3~5 249 236 56 28 107 94 112 51 25
1 TCRP1000C 19.2 2.3~5 249 236 56 28 107 94 112 51 25
2 TCRP2000C2 21.9 3.3~6 300 280 68 28 127 112 132 61 32

* All measurements in millimeters (mm) - except headroom (C-inches) . Please confirm specifications with technical support before purchase.

Specifications

Capacity (tonne) Model Standard Lift (ft) Cord L (ft) Speed (ft/min @ 90 psi) Up/Down Rates (Cubic ft/min @ 90 psi) Up/Down Air Consumption Load Chain Diameter (mm) x Chain Fall Lines Net Weight (Lbs) Weight For Additional 5ft of lift (Lbs)
w/NO Load w/Full Load w/NO Load w/Full Load
1/4 TCRP250C 10 6 61/45 29/57 35/28 28/32 4 x 1 76 4
1/2 TCRP500C 10 6 62/43 33/53 63/49 49/57 6.3 x 1 76 4
1 TCRP1000C2 10 6 31/21 16/26 63/49 49/57 6.3 x 2 94 8
1 TCRP1000C 10 6 34/21 19/30 62/53 49/60 7.1 x 1 91 5
2 TCRP2000C2 10 6 17/10 10/15 62/53 49/60 7.1 x 2 113 10

TCR Pendant Control - Plain Trolley Mount

Click to enlarge

Plain Trolley Mount Single Fall (pendant control); *For informational purposes only, contact Kito for dimensional drawing

Click to enlarge

Plain Trolley Mount Dual Fall (pendant control); *For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model Headroom C F a b e g h k n r t
1/4 TCRP250P 18.6 2~4 203 183 46 28 81 76 84 38 22
1/2 TCRP500P 18.6 2~4 203 183 46 28 81 76 84 38 22
1 TCRP1000P2 21.3 2.3~5 249 236 56 28 106 94 112 51 25
1 TCRP1000P 19.2 2.3~5 249 236 56 28 106 94 112 51 25
2 TCRP2000P2 21.9 3.3~6 300 280 69 28 127 112 132 61 32

* All measurements in millimeters (mm) - except headroom (C-inches) . Please confirm specifications with technical support before purchase.

Specifications

Capacity (tonne) Model Standard Lift (ft) Cord L (ft) Speed (ft/min @ 90 psi) Up/Down Rates (Cubic ft/min @ 90 psi) Up/Down Air Consumption Load Chain Diameter (mm) x Chain Fall Lines Net Weight (Lbs) Weight For Additional 5ft of lift (Lbs)
w/NO Load w/Full Load w/NO Load w/Full Load
1/4 TCRP250P 10 6 55/41 27/54 32/25 25/28 4 x 1 76 4
1/2 TCRP500P 10 6 62/43 33/53 60/49 49/57 6.3 x 1 76 4
1 TCRP1000P2 10 6 31/21 16/26 60/49 49/57 6.3 x 2 94 8
1 TCRP1000P 10 6 34/21 19/30 60/53 49/60 7.1 x 1 91 5
2 TCRP2000P2 10 6 17/10 10/15 60/53 49/60 7.1 x 2 113 10

TCR Pendant Control - Air Powered Trolley Mount

Click to enlarge

Pneumatic Motorized Trolley Mount Single Fall (pendant control); *For informational purposes only, contact Kito for dimensional drawing

Click to enlarge

Pneumatic Motorized Trolley Mount Dual Fall (pendant control); *For informational purposes only, contact Kito for dimensional drawing

Dimensions

Capacity (tonne) Model C (in.) F a b e g h k n r t
1/4 TCRM250P 19.3 2.28~5 493 396 262 30 94 122 112 51 30
1/2 TCRM500P 19.3 2.28~5 493 396 262 30 94 122 112 51 30
1 TCRM1000P2 21.5 2.28~5 493 396 262 30 94 122 112 51 30
1 TCRM1000P 19.5 2.28~5 493 396 262 30 94 122 112 51 30
2 TCRM2000P2 23.3 3.94~6 533 442 267 30 124 127 140 71 43

* All measurements in millimeters (mm) - except headroom (C-inches) . Please confirm specifications with technical support before purchase.

Specifications

Capacity (tonne) Model Standard Lift (ft) Cord L (ft) Speed (ft/min @ 90 psi) Up/Down Rates (Cubic ft/min @ 90 psi) Up/Down Consumption Traversing Speed (ft/min) Minimum Radius For Curved (mm) Load Chain Diameter (mm) x Chain Fall Lines Net Weight (Lbs) Weight For Additional 5ft of lift (Lbs)
w/NO Load w/Full Load TCR MCR w/Full Load+NO Load
w/NO Load w/Full Load
1/4 TCRM250P 10 6 68/44 52/51 63/49 48/57 53 65 3500 6.3 x 1 170 3
1/2 TCRM500P 10 6 68/44 37/57 63/49 48/57 53 65 3500 6.3 x 1 170 3
1 TCRM1000P2 10 6 34/22 19/29 63/49 48/57 53 65 3500 6.3 x 2 183 6
1 TCRM1000P 10 6 37/22 21/33 62/53 53/60 53 65 3500 7.1 x 1 209 4
2 TCRM2000P2 10 6 18.5/11 11/16 62/53 53/60 53 65 1300 7.1 x 2 254 7.5
